Efficient, timesaving single operator laser pulley alignment system prolongs machine life
Efficient and easy: One-person operation
Timesaving: Displays parallel offset, vertical and horizontal angle corrections all at once with only one system set-up
No cross-check: Measure once and correct
Reduces vibration and belt noise
Reduces downtime and energy costs
Prolongs belt, pulley and bearing life

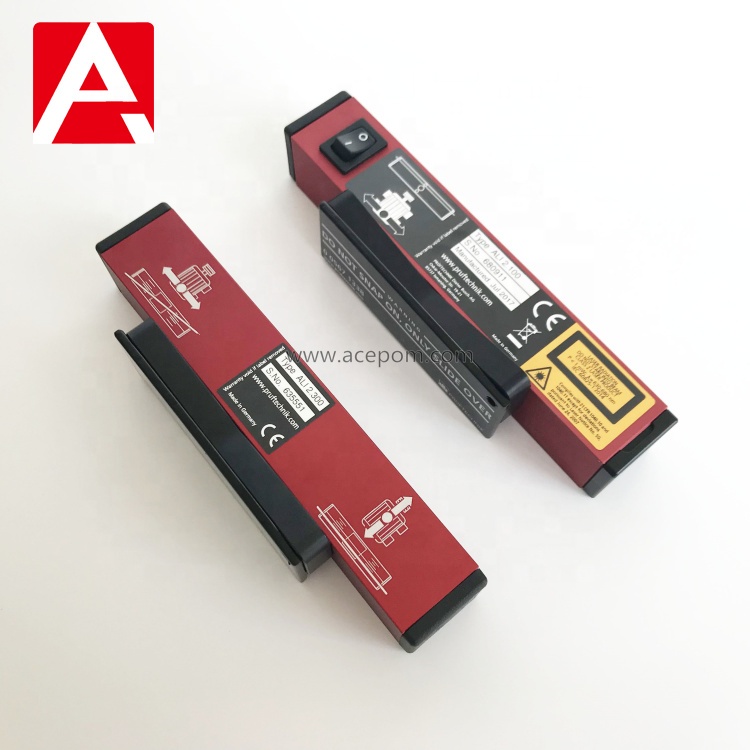

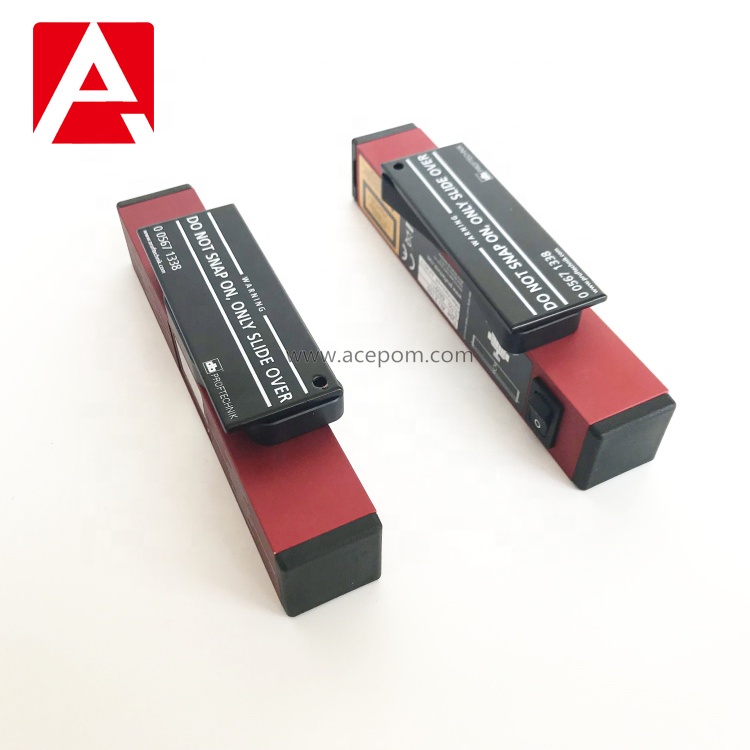

PULLALIGN is tailormade for the job as it is easy to use and only requires a single operator. Due to its versatile design and strong magnets, the units mount onto virtually any pulley face or ring gear.
A laser line is projected onto the reflector mounted on the opposite pulley. Parallel offset, vertical and horizontal angle corrections are visually determined by the position of the laser line on both the laser and reflector housing. These alignment parameters are monitored simultaneously. Good alignment is achieved when the transmitted laser line and the corresponding reflected laser line harmonize with the respective reference line.
