High heating capacity of up to 120 kg bearing

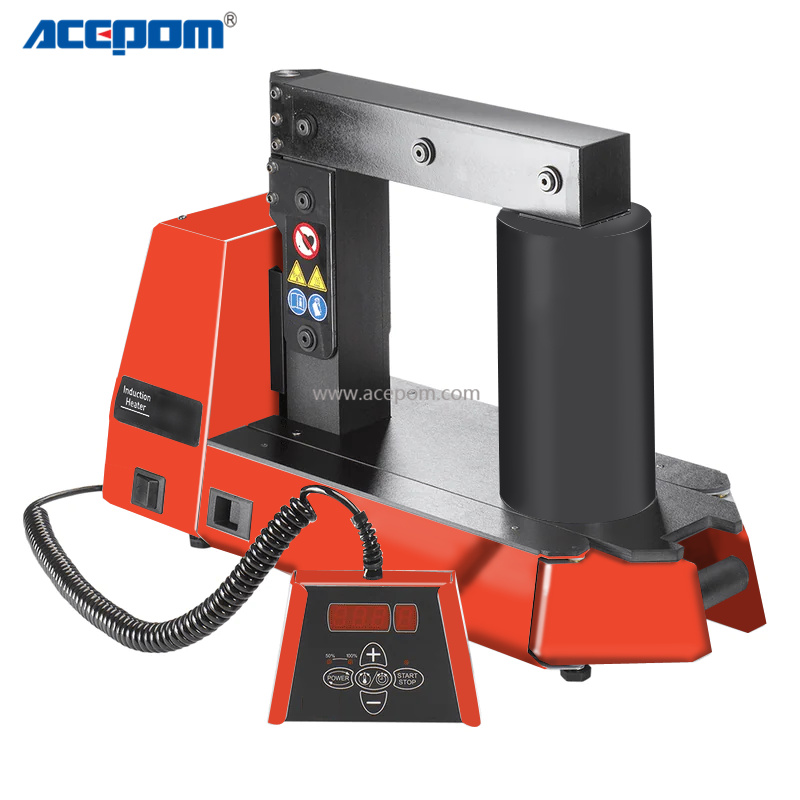

The medium induction heater ACEPOMAHEATER100 has the same high standards of efficiency and performance as the smaller heater ACEPOMAHEATER30, combined with increased capacity. The advanced design of the power electronics allows features of accurate electric current control, cutouts to avoid overheating and controls on rate of temperature increase.
Placing the induction coil outside the heater’s housing allows the heating of bearings weighing up to 120 kg (264 lb). The heater is equipped with thermal overheating protection to reduce the risk of damage to the induction coil and the electronics. In addition to temperature mode, the ACEPOMAHEATER100 is equipped with a time mode for heating components other than bearings. The heater is supplied standard with three yokes and is available in two executions: 50-60Hz .
TECHNICAL DATA |
Designation | ACEPOM-AHEATER-100 |
m20 performance |
| 97 kg (213 lb) |
Voltage, V/Hz | ACEPOM-AHEATER-100 | 50-60Hz |
Bearing: | - Maximum weight | 120 kg (264 lb) |
- Maximum bore diameter | 20 - 400 mm (0.8 - 15.7 in.) |
Temperature control: | - Range * | 0 - 250 °C (32 - 482 °F) |
- Magnetic probe | Yes, K-type |
- Accuracy (electronics) | ± 2 °C (± 3,6 °F) |
Time control: | - Range | 0 - 60 minutes |
- Accuracy | ± 0,01 sec. |
Performance example: | - bearing, weight, temperature, time | 23156 CC/W33, 97 kg, 110 °C, 20m |
Thermometer mode |
| Yes |
Bearing mode |
| Yes |
Power reduction |
| 2-step; 50 - 100% |
Demagnetisation according to norms (automatic) |
| Yes (<2 A/cm) |
Can heat sealed bearings |
| Yes |
Can heat pre - greased bearings |
| Yes |
Error guiding codes |
| Yes |
Thermal overload protection |
| Yes |
Maximum magnetic flux |
| 1,7 T |
Control panel |
| Key board with LED in remote control |
Operating area (w × h) |
| 155 × 205 mm (6.1 × 8.0 in.) |
Coil diameter |
| 110 mm (4.3 in.) |
Dimensions (w × d × h) |
| 570 × 230 × 350 mm (22.4 × 9.0 × 13.7 in.) |
Total weight, including yokes |
| 42 kg (92 lb) |
Maximum power consumption |
| 3,6 kVA (230V) |
4,0-4,6 kVA (400-460V) |
Number of standard yokes |
| 3 |
Standard yokes |
| 56 × 56 × 296 mm (2.2 × 2.2 × 11.7 in.), for heating bearings with bore diameter of 80 mm (3.1 in.) and larger |
28 × 28 × 296 mm (1.1 × 1.1 × 11.7 in.), for heating bearings with bore diameter of 40 mm (1.6 in.) and larger |
14 × 14 × 296 mm (0.6 × 0.6 × 11.7 in.), for heating bearings with bore diameter of 20 mm (0.8 in.) and larger |
Core cross section |
| 56 × 56 mm (2.2 × 2.2 in.) |
Yoke storage |
| Yes, foldable |
Sliding arm |
| No |
Swivel arm |
| Yes, large yoke only |
Cooling fan |
| No |
Housing material |
| Steel and glass filled polyamide |
* Maximum heating temperature capacity depends on the weight and geometry of the bearing or workpiece. The heaters can achieve higher temperatures, please contact for advice. |
